BRAND ACB
Model AUS-30H3-R2-A2
Power supply Ph-V-Hz 1Ph-208-230V~60Hz
Cooling Capacity W 7800
Capacity tolerance %
Input W 3450
Rated current A 15.1
EER 2.26
Heating Capacity W 8800
Capacity tolerance %
Input W 3400
Rated current A 15.9
COP 2.59
Max. input consumption W 4950
Max. current A 22.6
Starting current A 72
Compressor Model C-R191H6M
Type Rotary
Brand SANYO

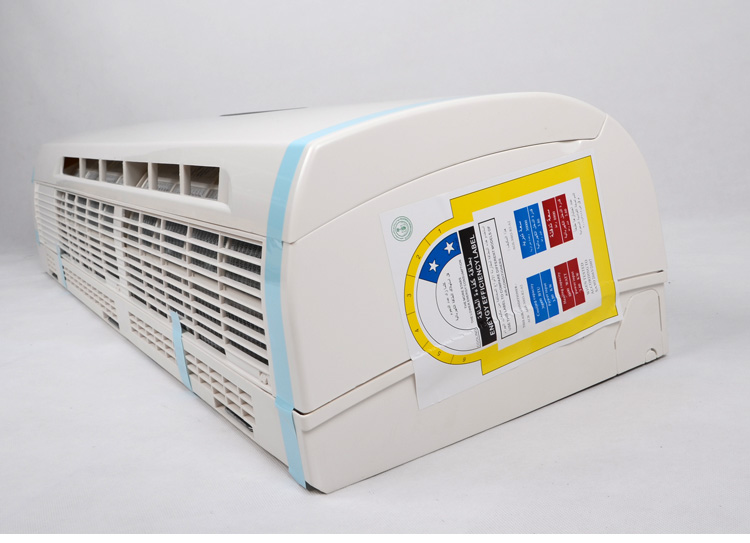

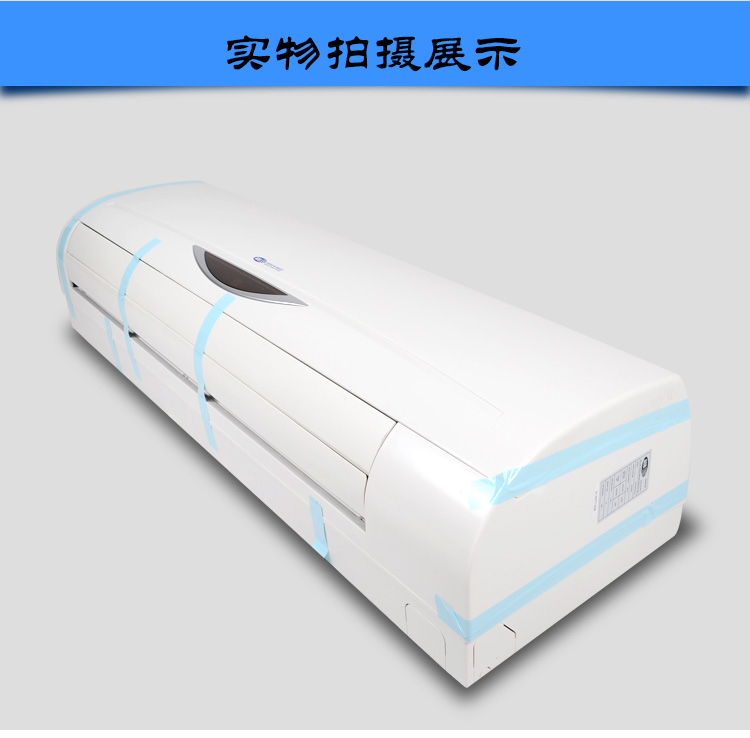

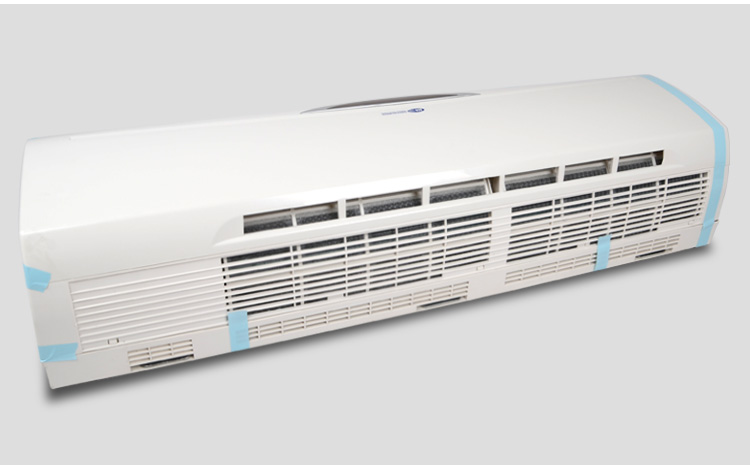

Indoor Indoor air flow (Hi/Mi/Lo) m3/h 1100/980/880
Rated input Power(cooling/heating) W 85
Rated current (cooling/heating) A 0.38
Moisture Removal (L/h) 3.8
Noise level(Hi/Mi/Lo) dB(A) 50/46/43

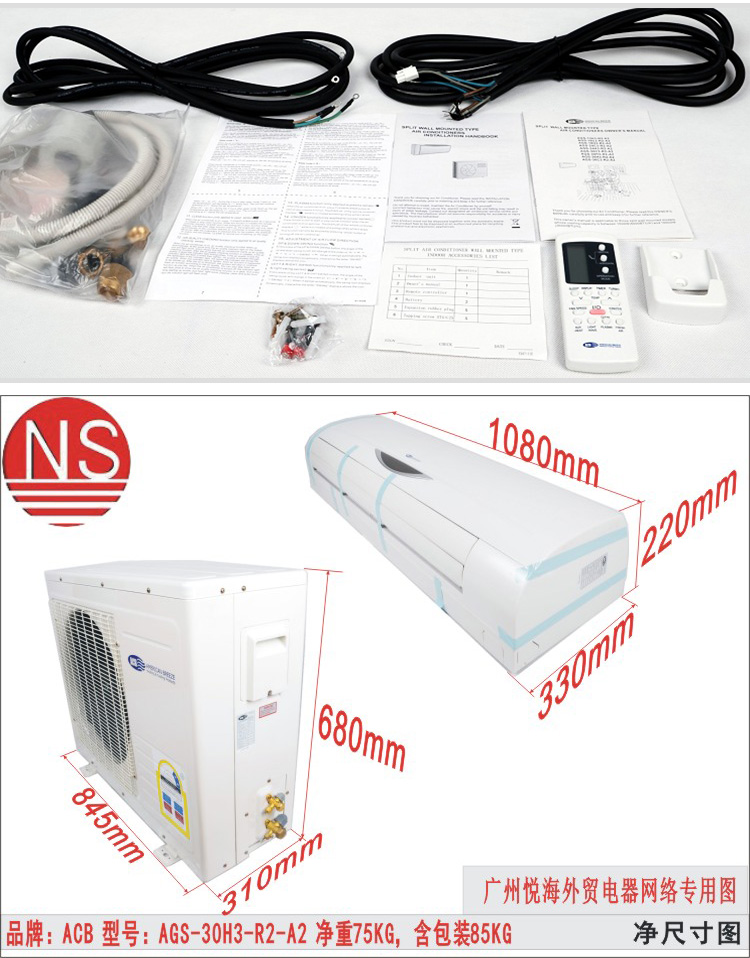

Unit dimension (W*H*D) mm 1080x330x220

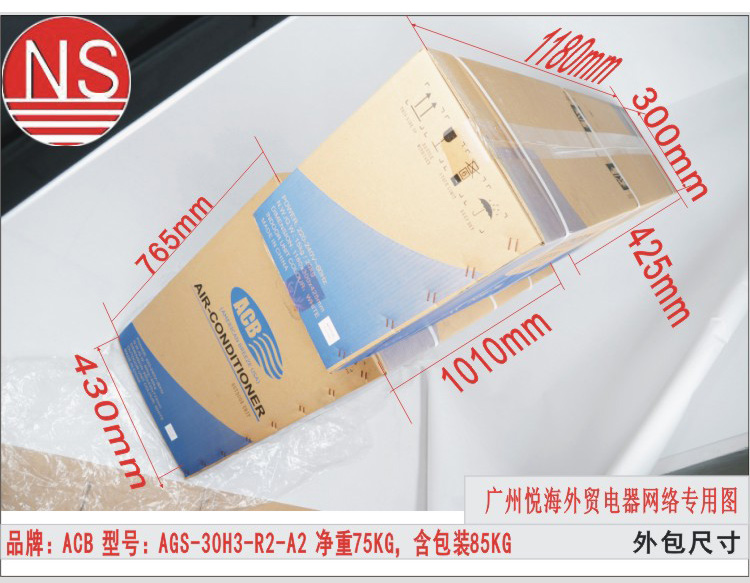

Packing (W*H*D) mm 1180x425x300
Net weight Kg 15
Gross weight Kg 20

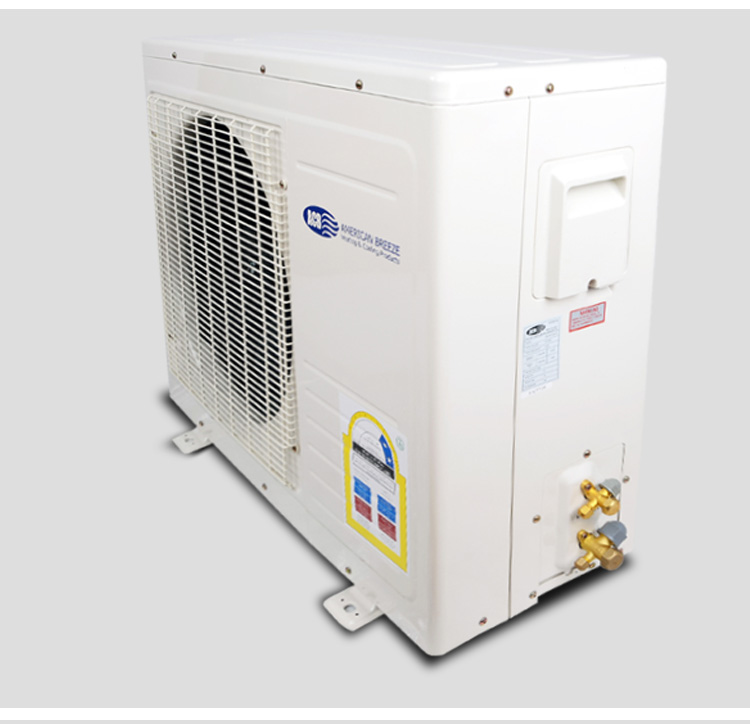

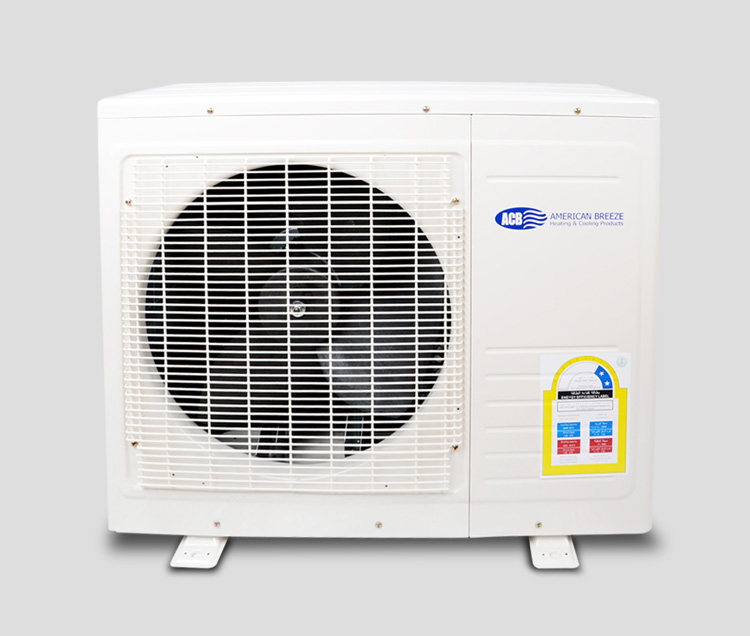

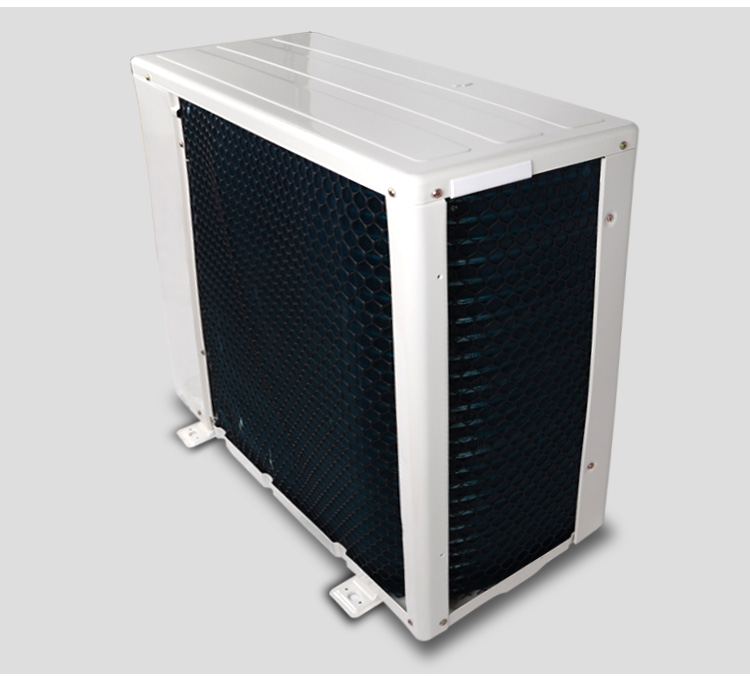

Outdoor Noise level dB(A) 62
Unit dimension (W*H*D) mm 680x845x310
Packing (W*H*D) mm 1010x765x430
Net weight Kg 60
Gross weight Kg 65
Refrigerant type R22
Refrigerant charge g 2250
Design pressure MPa 2.7

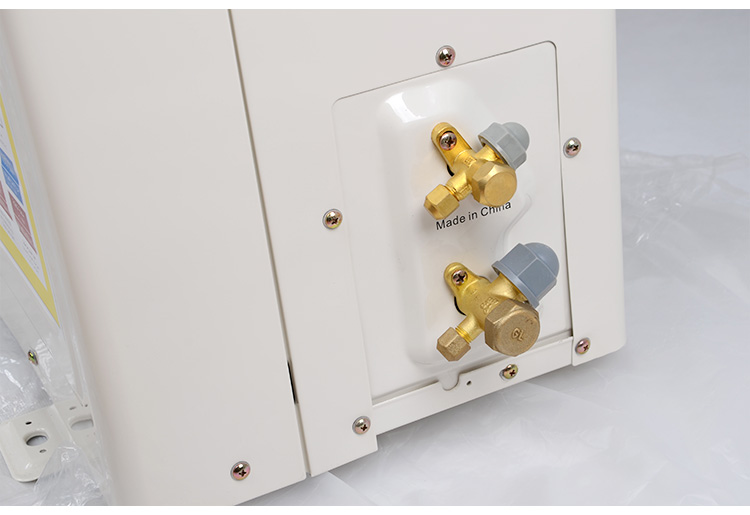

Refrigerant pipe Liquid side mm Φ9.52
Gas side mm Φ15.88
Max. refrigerant pipe length m 20
Max. difference in level m 10
Operation temperature range ℃ -7~52
Ambient temperature range ℃ -8~55
Application area m2 27-48
