| Customer Model | NSKFR-36W | ||
| Power supply | Ph-V-Hz | 230V,1Ph,60Hz | |
| Cooling | Capacity | Btu/h | 36000 |
| Input | W | 4050 | |
| Rated current | A | 18.3 | |
| EER | W/W | 2.61 | |
| Heating | Capacity | Btu/h | / |
| Input | W | / | |
| Rated current | A | / | |
| COP | W/W | / | |
| Max. input consumption | W | 5000 | |
| Max. current | A | 29.0 | |
| Starting current | A | 89 | |

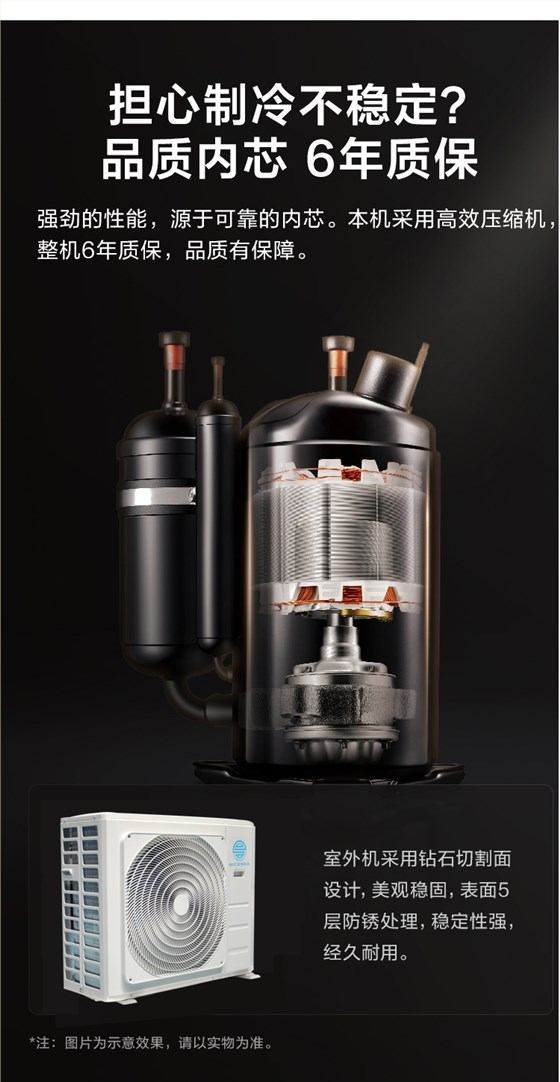

| Compressor | Model | ATH356UN-C9EU | |
| Type | ROTARY | ||
| Brand | HITACHI | ||
| Capacity | W | 10450 | |
| Input | W | 3480 | |
| Rated current(RLA) | A | 17.0 | |
| Locked rotor Amp(LRA) | A | 89 | |
| Thermal protector | UP14SE5115 | ||
| Thermal protector position | INTERNAL | ||
| Capacitor | μF | 80.0 | |
| Refrigerant oil/oil charge | ml | α68HES-H/880 | |
| Indoor fan motor | Model | YKS-120-8-13 | |
| Input | W | 330.0 | |
| Capacitor | uF | 6.5 | |
| Speed(Hi/Mi/Lo) | r/min | 590/540/470 | |
| Indoor coil | a.Number of rows | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 25.4x22 | |
| c.Fin spacing | mm | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ9.52,Inner groove tube | |
| f.Coil length x height x width | mm | 422x965x44 | |
| g.Number of circuits | 6 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1612///1410 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 54.0/0/51.0 | |

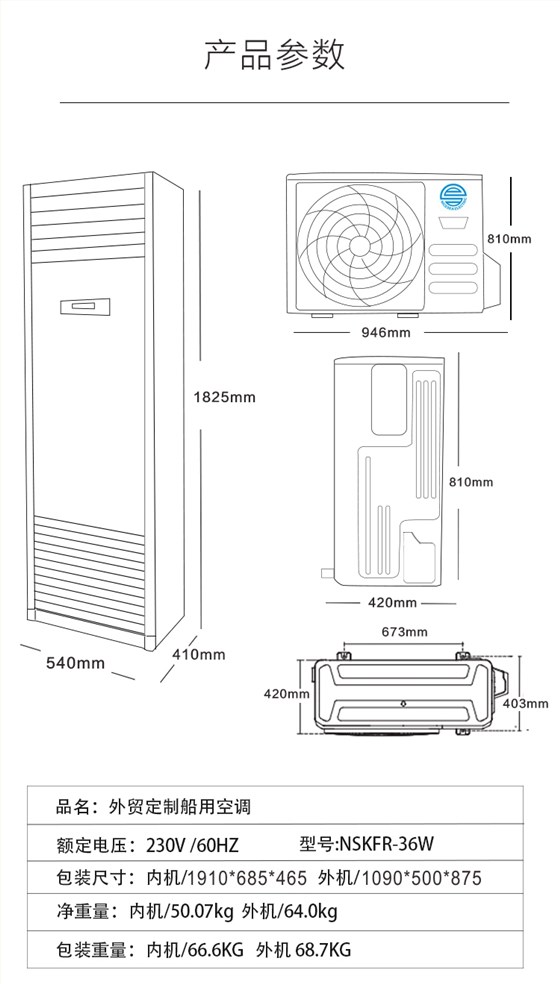

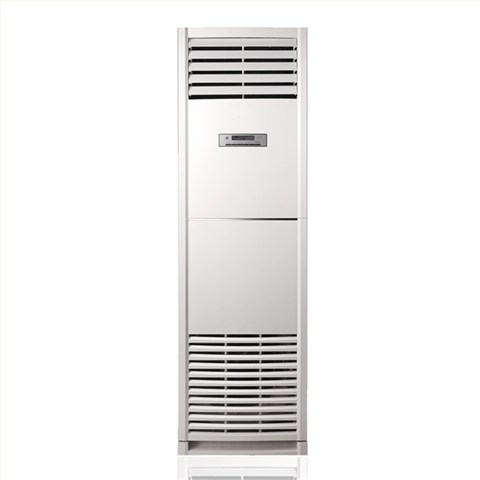

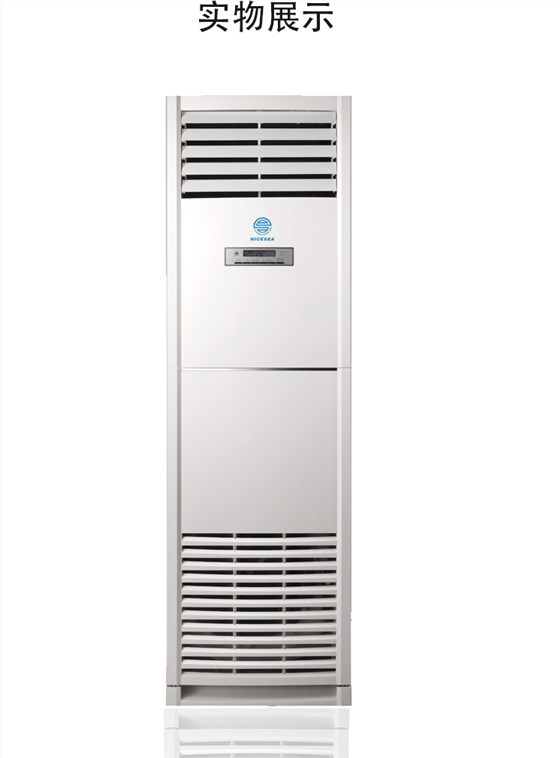

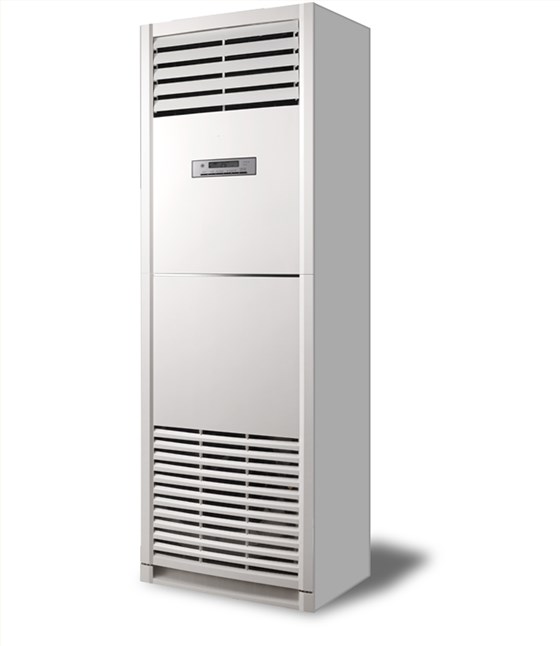

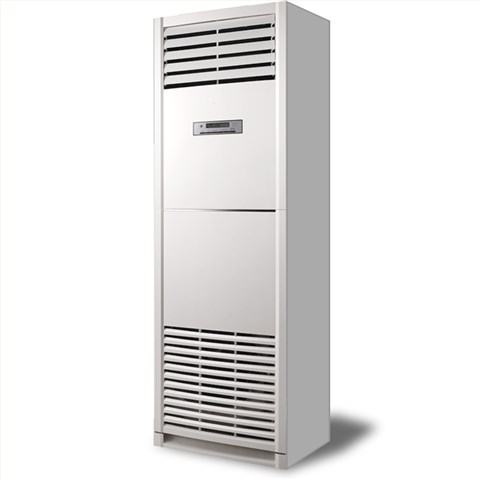

| Indoor unit | Dimension(W*D*H) | mm | 540x410x1825 |
| Packing (W*D*H) | mm | 1910x685x465 | |
| Net/Gross weight | Kg | 50.7/66.6 | |
| Outdoor fan motor | Model | YKT-60-6-41 | |
| Input | W | 150.0 | |
| Capacitor | uF | 4 | |
| Speed | r/min | 910/830 | |
| Outdoor coil | a.Number of rows | 2.0 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1.4 | |
| d.Fin type (code) | Unhydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,Inner groove tube | |
| f.Coil length x height x width | mm | 1005x756x26.74 | |
| g.Number of circuits | 6 | ||
| Outdoor air flow | m3/h | / | |
| Outdoor noise level | dB(A) | 57.5 | |

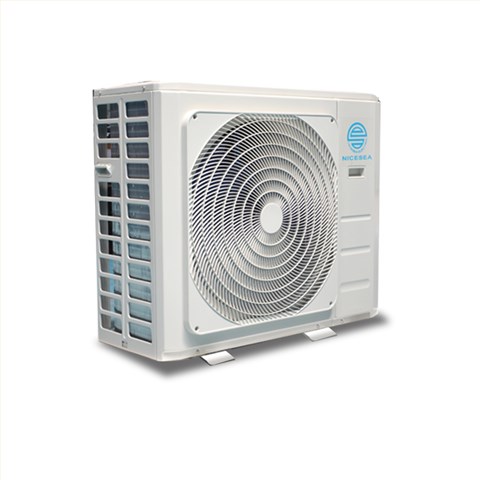

| Outdoor unit | Dimension(W*D*H) | mm | 946x410x810 |
| Packing (W*D*H) | mm | 1090x500x885 | |
| Net/Gross weight | Kg | 64.0/68.7 | |
| Refrigerant type | Kg | R410A/2.1 | |
| Design pressure | MPa | 4.2/1.5 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 9.52mm(3/8in)/19mm(3/4in) |
| Max. refrigerant pipe length | m | 30 | |
| Max. difference in level | m | 20 | |
| Connection wiring | 1.5x4// | ||
| Plug type | //no-plug | ||
| Thermostat type | 遥控式(Remote Control) | ||
| Operation temperature | ℃ | ||
| Room temperature | Indoor(cooling/ heating) | ℃ | 17～32// |
| Outdoor(cooling/heating) | ℃ | 18～43// | |
| Application area (Cooling Standard) | m2 | 48～70 | |
